SSTV Slant Adjustment Help

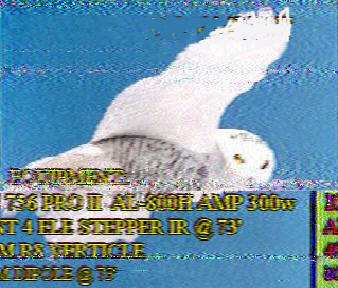

Are your images slanted?

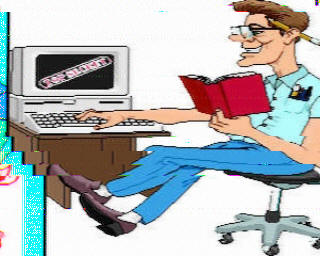

Slant above not to be confused with sync errors below

I will try to explain Sync errors later.


MMSSTV has a handy tool to adjust image slant. In some cases, the offset numbers can be used in other SSTV applications such as ChromaPix.

First things first.

Turn off all auto slant features. The Auto slant features works only for receiving images and will have no effect on your transmitted images.

First Adjust slant for received images

  1. In the menu bar at the top of the main window , Select "Option" and then "Setup MMSSTV"

  2. Select the "RX" tab and remove the check from the "Auto slant" option

  3. Select the "Misc." tab and set the "TX offset" to zero (0.00) and click the "OK" button. to save that setting.

  4. Most of the following information is available in the help file for MMSSTV.
  5. If you want to calibrate your soundcard accurately, listen to AM WWV radio. These stations can be found on 5, 10 or 15 MHz
  6. Go to "Option" and then "MMSSTV Setup."
  7. Select the "Misc." tab and push "Adj" button near the bottom left.
  8. Next you can select full screen for best resolution. The screen should be mostly all black to start.
  9. Right clicking the screen anywhere near the white line will position green to help with the alignment .
  10. See the example screen with the diagonal "slanted" white line.

  11. Example of straight line below.

  12. You should receive the WWV signal that says "At the tone, ?? hours ?? minutes coordinated universal time" for a little while Full screen will get you the highest resolution.  This may take a few minutes.
  13. You should start seeing a reasonably straight white line, but it may be on an angle.
  14. Single click on the very bottom of the line and then again at the very top of the line. The dialog box should close, and a new clock number will be set. You may need to repeat this operation a couple times to get the hang of it.
  15. If you get a line with a lot of slant, you may need to do this procedure a few times. The more vertical the line gets after each adjustment, capturing more of the line will get you the highest accuracy. (points further apart from each other will get the highest accuracy) Full screen dialog box with a full-length line from the top of your monitor to the bottom will get you the best results.
  16. Right click on the screen to get the green positioned near the white line to check vertical alignment for best results.
  17. Once the line is as vertical as you can get it, you have now corrected your sound card crystal frequency. Your receive crystal is now corrected. Note Receive only and in most cases, transmit too. You should not ever need to change this number again if you use this computer or sound card.

Adjust slant for transmitting images

  1. In most cases after adjusting your receive slant, your transmitted images will be good. Many sound cards are using the same crystal for RX as for TX however there are sound cards using separate crystals for TX and RX
  2. To adjust your TX slant, you will be changing only the "TX offset" shown below.  Do not adjust the receive "Clock".  your receive is good now at this point.
  3. You can check your TX offset at some of the various SSTV cams here on WorldSSTV but be careful, some SSTV cams are using "Auto slant" and this will not help. My SSTV cam "Auto slant" is disabled most of the time and should help you.
  4. Sometimes it may be easier to find a SSTV friend on the air and have them help you with the TX offset. Most hams using MMSSTV will be able to give you the exact the number to put in your TX offset after receiving your picture. © 2001 -
